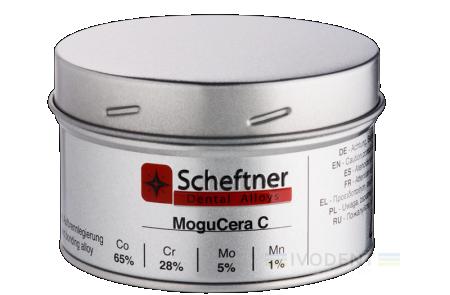

MoguCera C 1kg

Termék kód: s-138000

MoguCera C 1kg

1 / 1

Termékleírás:

MoguCera C

CoCrMo bonding alloy for conventional, high-fusing (low expansion) ceramics. Free of nickel, lead, beryllium and cadmium. Type 5 pursuant to DIN EN ISO 22674.

High degree of purity
Biocompatible and extremly corrosion resistant

Advantages for Dental Technicians:

Very good alloy properties enable system-free Operation
Very easy to polish and easy working characteristics due to a low hardness of 300 HV10
A CTE of 14.1 ensures flexibility in ceramic selection and safe veneering
No cooling phase required, depending on the ceramics
Excellent metal-ceramic bonding, even without bonder
An oxidation firing can be omitted
Optimal conditions for laser welding
Application flexibility and easy melting, no sparking

Composition:

Co	65%
Cr	28%
Mo	5%
Mn	1%
C,Si	<1%

Technical properties:

Proof stress (Rp 0.2)	508MPa
Ultimate tensile strength	795MPa
Elongation	9%
Elastic modulus	209GPa
Vickers hardness	300 HV 10
Density	8.3g/cm³
Melting range	1370 - 1435°C
Preheating temperature	850 - 950°C
Casting temperature	1535 - 1590°C
CTE (20-600°C)	14.1 x 10⁻⁶K⁻¹
Laser weldable	Yes
Type (DIN EN ISO 22674)	5

Trade unit:

1000g

Ref. 138000

Scheftner Dental
